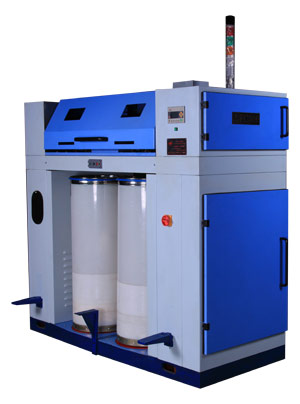

◆ Home > Product > Product Drawing Machine：● FA387 Type Digitization Draw Frame　　● FA316A /B Type High Speed Draw Frame　　● FA318A double holes high speed draw frame with autoleveller　● FA396 single holes high speed draw frame with autoleveller　● FB400 Half Fine Draw Frame　● FC300 Long Fibre Draw Frame　|　Carding Machine：● FA201G Carding Machine　● A186G Carding Machine　● FA233A Carding Machine　|　HOPPER：● FA179G TYPE AUTOMATIC HOPPER　● FA1171G TYPE HOPPER　|　Doff Car：● DA2010 Doff Car for spinning frame FC300 long fibre draw frame FC300 long fibre draw frame is suitable for a single and two or more of long fibre and animal nap. The length could be up to 80-120mm.Electric adopts PLC and touch screen in order to make the control stable and dependable. Technical standard · elivery number:2 holes · Maxmium output speed:500m/min · Total drafting mutiple: 5.37-10.92 · Drafting style:3 over 3 with pressure bar · Feeding sliver number:6-8 pcs · Suitable fiber length:80-120mm · Input can dimension: first time Φ400、Φ500、Φ600 can height：900、1100mm 　　　　　　　　　　　 Second time Φ400、Φ350 can height：900、1100mm · Output can dimension: Φ350、Φ400 can height：900、1100mm 　　　　　　　　　　　　　Φ300、Φ230 can height：900mm · Mainframe OAD: 1945x820x2014mm · Weight:2000KG · Motor power:2.2KW
