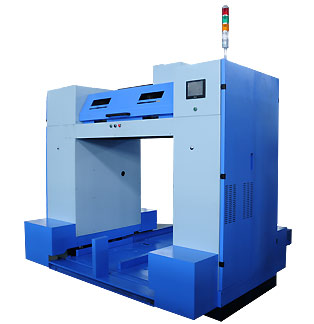

FA387 Type Digitization Draw Frame
FA387 Type Digitization Draw Frame is the most advanced draw frame, which collected digitization and intelligent control together.This type machine adopts 5 over 4 double zone curvilinear drafting system with pressure bar,and adopts digitization technology to modulate the sliver’s weight without changing light and weight teeth-gears,so its weight –control precision could be up to ±0.05g/5m.In order to meet different textile technology,we can govering all the tension everywhere.Electric adopts PLC control,inverter modulating speed,therefore it realizes man –machine dialogue really.
Main Specification
· Apply digitization technology to modulate the draft times ,weight control-precision can be up to ±0.05g/5m.
· Up coiler and calender adopts stepless modulation tension,conveniently and practically.
· Lower coiler adopts synchronized belt driving,so the driving is steady and non-impulision.
· Up and Lower coiler adopts reducer driving ,so it has the high driving precision grade and good synchronizaton.
· Suit for high speed and big coiler,especially for output can of Φ600X1200mm.
· Drafting device adopts 5 over 4 double zone curvilinear drafting system with pressure bar
· Guiding bar adopts belt driving, make the driving steady and acurate,low the noise and be easy maintenance .
· Coiler adopts belt driving, this device is simple and dependable,could low the noise and be easy maintenance.
· Coiler adopts alloy aluminium and copper pipe integrated accurate casting technology,suit for high speed.
· Adopts touch screen ,realize man-machine dialogue. |
|

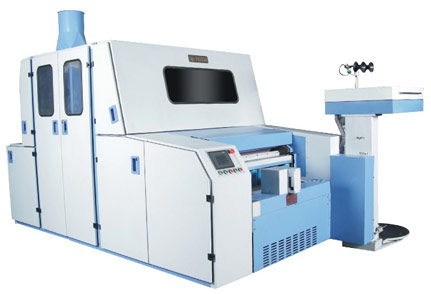

FA233A
Carding Machine
This type of Carding Machine owns special three roller stripping
cotton mechanism,which apply convertor to realize stepless speed for
doff.It also achieve man-machine conversation with touch screen.The
stationary flat adopts 3 front 3 and carding segment under licker-in
are fitted,clinder running in reverse of flats,which could pefectly
realize the function of cading and cleaning foreign substance,so it
improves the web quality.Flat stripping the cotton is replaced by
brushing roller and cleaning roller .
Specification
· Microcomputer control and digital display relative parameter
· Inverter-controlled feed roller and doffer drive for stepless speeds
· Adoption of synchronous toothed belt for driving with steady running
and low noise
· Visible plastic adhesive filtering pipe with smooth surface,multi
–suction point on card or continuous suction with good suction efficiency,continuously
pressure detection
· New type carding segment under licker-in are fitted and aluminum
alloy front and rear stationary flats
· Double apron web take –off device allowing visual inspection of
the web
· Totally-enclosed safety covers are of reliability,convenience and
beautiful look
· There are many automatic stop motion devices
· There are front and rear cleaners fitted
· New type of metallic card clothing with high quality
· In reverse direction of cylinder running flats increase carding
action and improve web quality
· For flat stripping the comb is replaced by the brushing roller and
cleaning roller
· Integrated cylinder and doffer structure,improve the precision,steady
and dependable
|
|

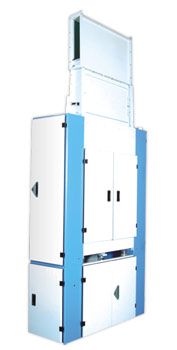

FA179G TYPE AUTOMATIC HOPPER
● FUNCTIONS
The machine is a connective equipment between the picker and the carding machine.Its function: Make the fibre which is opened evenly and mixed together to form the even cotton layer.And feed the carding machine.In order to make sure that the feeding is even and continuous,and to realize blow carding process continuously.
● MAIN SPECIFICATION
Working width(mm) |
|
950 |
Feeding roller |
Dia.(mm) |
Φ98 |
Rotate speed(r/min) |
1.96---2.94 |
Opening beater |
Beater mode |
Four rows brads |
Beater dia. |
Φ240 |
Rotate speed |
623-890 |
Output roller |
Dia.(mm) |
Φ98 |
Rotate speed(r/min) |
Designed by feeding quantity of carding machine |
Yield per a set(kg/h) |
20-60 |
|
Power(kw) |
1.7 |
|
O.A.D(L×W×H) |
1560×2800×560 |
|
Approx net weight(kg) |
720 |
|
|
|

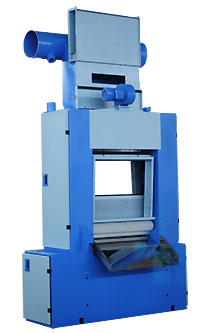

FA1171G TYPE HOPPER
● Application
This machine can be used with all kinds of carding machines (FA186、FA201、FA233,etc),Connected with blow-room can be used as simple Blowing and Carding System.
● Main feature
· Pressure of lower hopper is checkeable and stable is for forming even and uniformity fibre layer
· good open effection ,low fibre damage,improving the making ration about 2%.
· improving sliver eveness and weight uneveness
· the space between feed rollers and feed rollers / open roller is adjustable
· the feed rollers controlled by inverter
· it is mounted with protection unit
FA1171G electrical control
FA1171G autoleveller is mainly applied in blow-room alteration for upgrading traditional carding,it controls feed roller speed by detecting thickness of cotton layer,to make sure sliver weight
Suitable fibre |
Cotton synthetic and all other man-made fibers in length less than 76mm |
Working width (mm) |
950 |
Production(kg/h) |
100 |
Diameter of feed roller(mm) |
φ120 |
Diameter of opening roller(mm) |
φ250 |
Blower speed (r/min) |
2810 |
Installed power (kw) |
1.42 |
Overall dimension(W×L×H)(mm) |
1414×600×3360 |
Net weight(kg) |
1500 |
|
|
DA2010 Doff Car for spinning frame
Technical Feature
· Convenient and efficient、economical and practical can be applied for every kind of textile trade
· Adopts mechanical arms to pull the yarn,so the machine cann’t do harm to the yarn
· Doff and pulling yarn could be realized by two different actions,this improve the efficience
· Adopts the belt driving to realize continous and acurate action,also low the n
|
|
|
