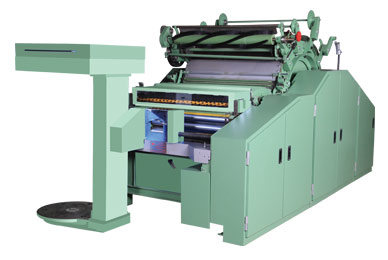

A186G Carding Machine
A186G Carding Machine owns special three roller stripping cotton mechanism,which apply convertor to realize stepless speed for doffer.The stationary flat adopts 3 front 2 and carding segment under licker-in are fitted,which could improve the function of carding and decrease cotton knots.At the same time we utilize length device which has a collection of output length、coiler breaking and inspection of licker-in speed ,so it will control the quality very well.The groudsill basis is designed by our techinician according to the traditional style,In this respect it is greatly suitable for the reconstruction of old mills and old machines.

Specification
· Range of application：fiber length from 24 mm to 75mm cotton、chemical fiber and blends
· sliver quantify：3.5-6.5
· specification for laps（mm）：maxmium dia.Φ550，width 980
· output sliver quantify by chute（克/米）: 400-800
· yield（KG/h）：maxmium 30
· output speed（m/min）：maxmium 150
· total drafting multiple：67.3-120.2
· rotate speed of licker-in（r/min）：980、1070
· rotate speed of doffer（r/min）：21.3-38.2
· rotate speed of cylinder（r/min）：360、330
· flats pcs（working flat / total number of flats）：40/106
· rotate speed of flat（mm/min）：cotton- 162、196、244、177、214、266
Fiber-81、98、122、89、107、133
· additional carding elements：1 pcs of licker-in carding plate、2pcs of rear stationary flats、3pcs of front stationary flats
· output can dia.（mm）：dia.Φ600、height 900、1100
· power：4.4KW
· floor aera(mm )：3648 by 2009.5
· weight：4500kg
