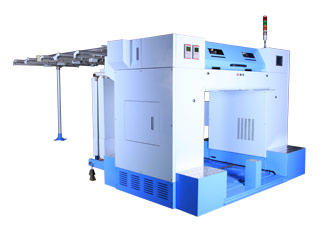

FA318A double holes high speed draw frame with autoleveller
This type machine can improve the sliver quality,which adopts Short fiber auto leveller system (Uster,Swizerland) and five patents (concentration lubricating device、interval sealing device、compelling lubricating device、auto-shaving cotton device、draft driving mechanism).So this could control the drafting quality of sliver. FA318A adopts 5 over 4 with pressure bar drafting style ,which can advance the uneven condition of force.It is suitable for short firbe.

Technical standard
· Delivery number:2 holes
· Maxmium output speed:800m/min
· Total drafting mutiple:4-14 times
· Drafting style:5 over 4 with pressure bar
· Feeding sliver number:6-8 pcs
· Suitable fiber length:15-76mm
· Input can dimension: Φ400、Φ500、Φ600、Φ800、Φ900、
　　　　　　　　　　　　Φ1000 can height: 900、1100（1200）mm
· Output can dimension:Φ350、Φ400、Φ450、
　　　　　　　　　　　　 Φ500、Φ600、can height: 900、1100mm
· Mainframe OAD: 2490x1000x2110mm
· Weight:2400KG
· Motor power:5.5KW
