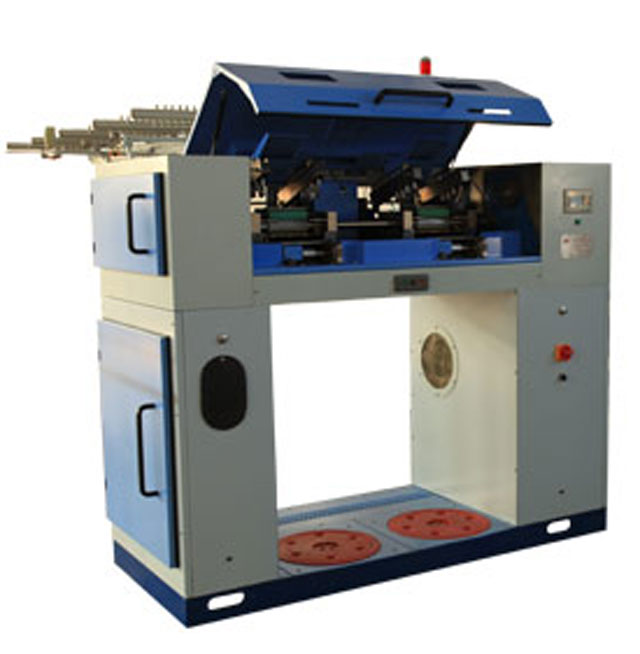

FB400 Half Fine Draw Frame
FB400 is suitable for coarse fiber,which has three advantages
below.First of all,it adopts single adding dampness device in order
to solve the humidity of coarse fiber.Then it applies single room-isloated
device ,so this couldn’t mix with outside fiber.At last we can do
cleaning singally when the machine is off.
Technical standard
· Suitable fiber length:22-76mm
· Delivery number:2 holes
· output speed:100-400m/min
· Total drafting mutiple:5-14 times
· Drafting style:3 over 3 double zone curvilinear drafting system
with downholding pressure bar
· Feeding sliver number:6-8 pcs
· Input can dimension: Φ230、Φ300、Φ350、Φ400、Φ500、Φ600
can height:900、1100mm
· Output can dimension: Φ230、Φ300、Φ350、Φ400
can height:900、1100mm
· Feeding form:overhead creel positive feeding
· Mainframe OAD: 1945x820x2014mm
· Weight:2000KG
· Motor power:2.2KW
|
